Overview

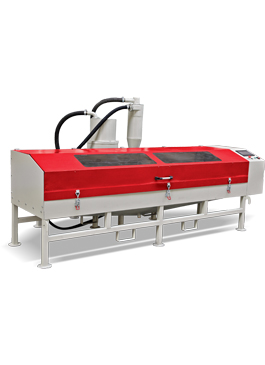

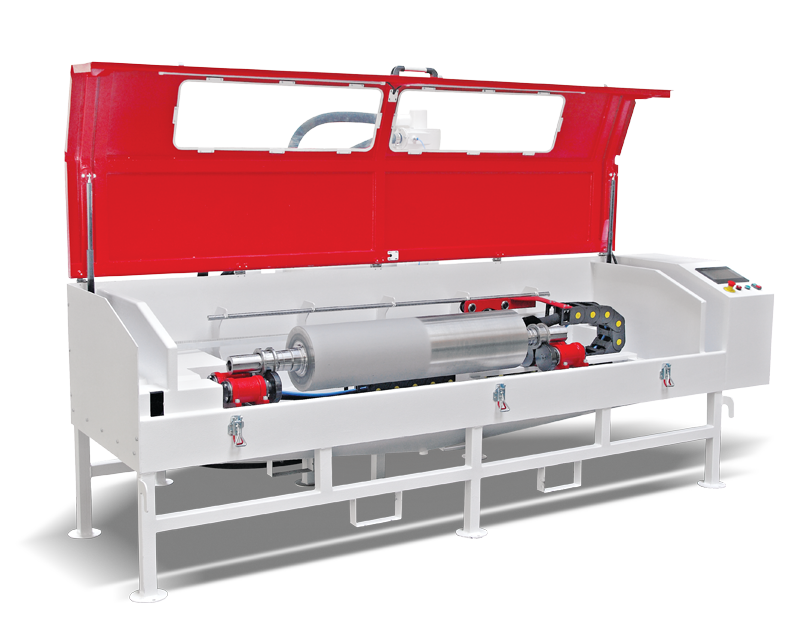

The YTK 40150 and 80210 models are designed to sandblast and achieve the desired surface roughness (Ra) for smooth rolls, including flour milling rolls and flaker rolls. These machines feature a dust-free environment thanks to a sand recycling system and vacuum suction with filter, protecting operators from exposure to abrasive materials.
The blower system minimizes health risks, while most of the abrasive material is recycled into a back-sand tank, reducing air contamination. The PLC-controlled system ensures a homogeneous surface roughness, with adjustable roll rotational speed and nozzle linear speed to achieve the desired finish efficiently.
| Application Sizes |
|
YTK 40150 Roll Diameter: 150–400 mm (6”–16”) Roll Body Length: Up to 1,500 mm (60”) YTK 80210 Roll Diameter: 600–820 mm (24”–32”) Roll Body Length: Up to 2,100 mm (84”) Special size machines can also be produced according to customer requirements. |
| Application Fields |
| Flour Milling Rolls | Maize Milling Rolls | Coffee Grinding Rolls | Oil Milling Rolls |
| Features & Advantages |
|

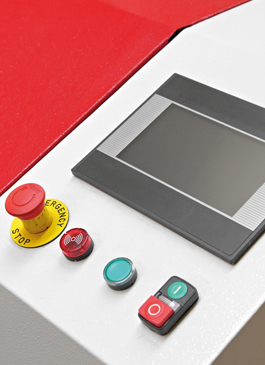

- PLC Controlled for precise operation - User-Friendly Proprietary Software - Quick and easy roll replacement - Low operation and maintenance cost - Minimal consumption of spare parts - Minimal air pressure required - Easy installation - Creates homogeneous surface roughness in a short time - Safe and dust-free operation with recycling system and vacuum filtration |
